800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Transmission Components (Plug In) (Page 2 0F 2)

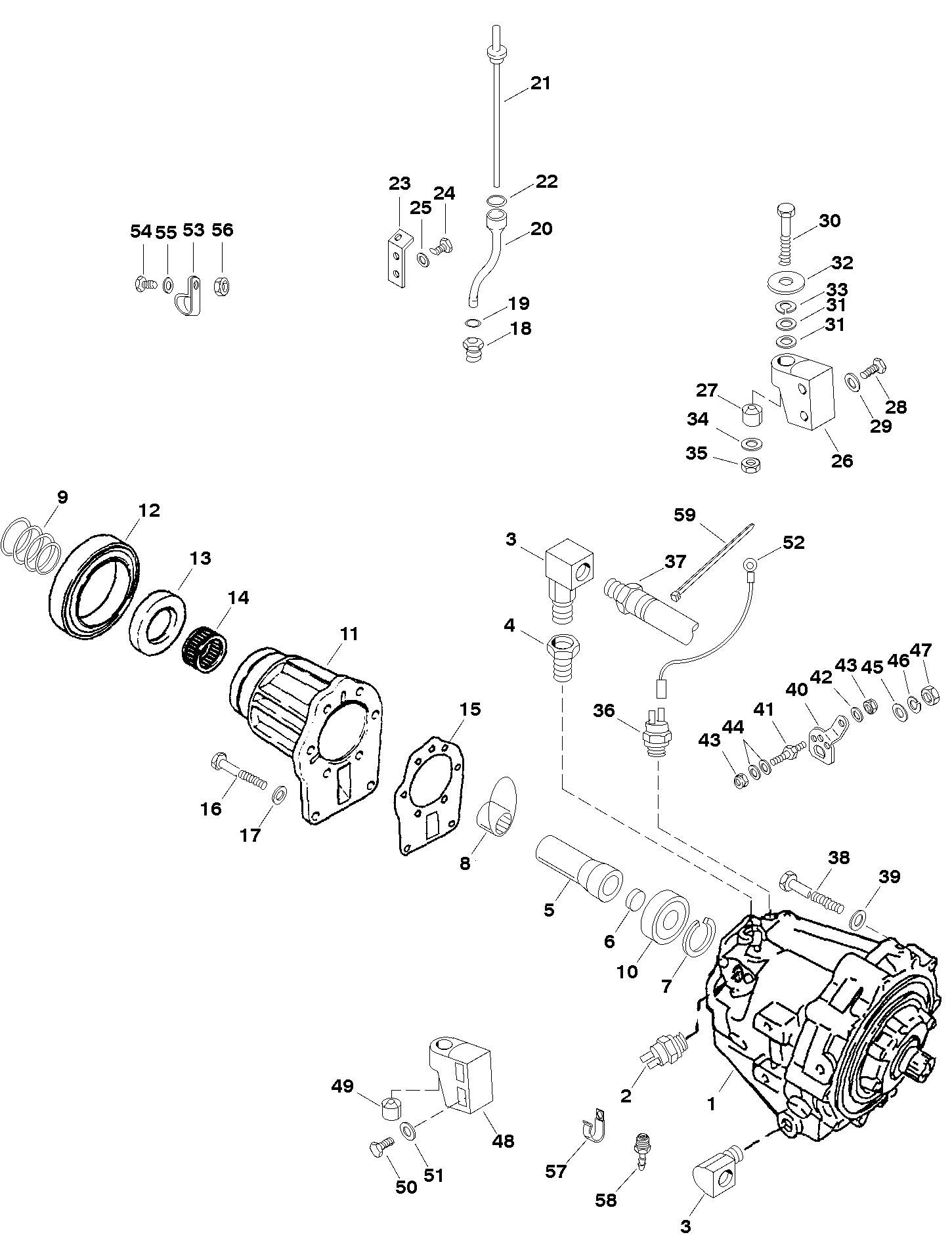

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 821847A6 | TRANSMISSION ASSEMBLY (COMPLETE) | 1 | This Part is No Longer Available | |||||
| 1 | 821847A5 | TRANSMISSION | 1 | ||||||
| 40 | 12128 | LEVER-Shift Transmission | 1 | ||||||
| 41 | 16-63335 | STUD-Shift Lever | 1 | This Part is No Longer Available | |||||
| 42 | 12-39143 | WASHER-Shift Lever Stud | 1 | ||||||
| 43 | 11-8267089 | NUT (.250-28) | 2 | 11-20361 | |||||
| 44 | 12-29245 | WASHER-Shift Lever Stud | 2 | ||||||
| 45 | 12-20722 | WASHER-Transmission Lever Stud | 1 | This Part is No Longer Available | |||||
| 46 | 13-39107 | 700-21496 | LOCKWASHER (.312) | 1 | |||||
| 47 | 11-22053 | NUT (.312-24) | 1 | ||||||
| 48 | 47334A2 | BRACKET ASSY-Mount (STARBOARD) | 1 | This Part is No Longer Available | |||||
| 49 | 35852 | MOUNT-Transmission Mount Bracket | 1 | ||||||
| 50 | 10-47462 | SCREW (.437-14 x 1.250) | 2 | ||||||
| 51 | 13-32993 | LOCKWASHER (.437) | 2 | ||||||
| 52 | 84-88032A5 | CABLE ASSEMBLY (Tan/Blue) | 1 | ||||||
| 52 | 84-86322A29 | CABLE ASSEMBLY (Black) | 1 | ||||||
| 53 | 54-859172 | CLAMP | 1 | 54-67015 | |||||
| 54 | 10-60300 | SCREW (.250-28 x .750) | 1 | ||||||
| 55 | 12-29245 | WASHER | 2 | ||||||
| 56 | 11-8267089 | NUT (.250-28) | 1 | 11-20361 | |||||
| 57 | 54-47483 | J CLIP (Neutral Switch Wire) | 1 | ||||||
| 58 | 22-63186 | FITTING (Hose To Reservoir Bottle) | 1 | ||||||
| 59 | 77054 | STA STRAP (14.500 In.) | 1 | ||||||
| 40 | 847718A10 | COMPONTENT OF PARTIAL ENGINE | This Part is No Longer Available |
