| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

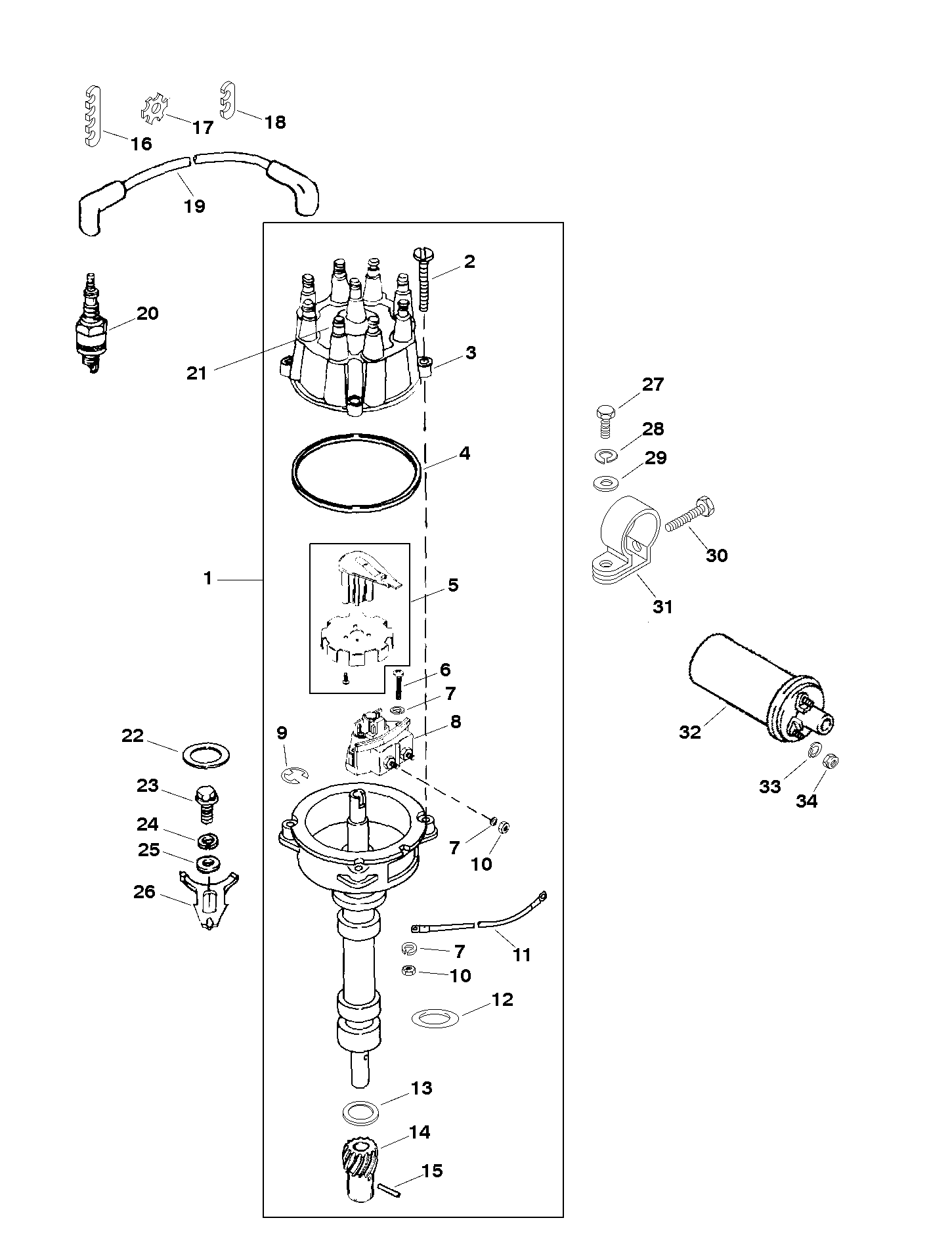

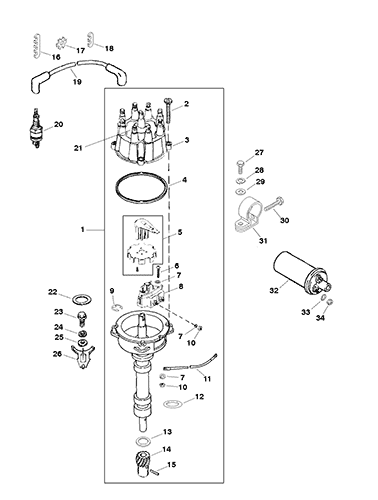

| 1 |
805185A28 |
|
|
|
|
DISTRIBUTOR ASSEMBLY |
1 |
|
|
| 2 |
10-90926 |
|
|
|
|
SCREW (#10-32 x .812) |
4 |
|
|
| 3 |
805759T1 |
|
|
|
|
CAP ASSEMBLY |
1 |
805759A2 |
|
| 4 |
27-805760 |
|
|
|
|
GASKET-Distributor Cap |
1 |
|
5 |
| 5 |
13524T1 |
|
|
|
|
WHEEL ASSEMBLY-Rotor Sensor |
1 |
13524A5 |
3 |
| 6 |
10-66686 |
|
|
|
|
SCREW (#10-32 x 1.00) |
1 |
|
|
| 6 |
10-72202 |
|
|
|
|
SCREW (#10-32 x 1.250) |
1 |
|
|
| 7 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
5 |
|
|
| 8 |
87-892150Q02 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
87-91019A3 |
|
| 9 |
53-90916 |
|
|
|
|
RING-Retaining-Distributor Shaft |
1 |
|
|
| 10 |
11-68219 |
|
|
|
|
NUT (#10-32) |
3 |
|
|
| 11 |
84-86322A17 |
|
|
|
|
CABLE ASSEMBLY (Black)-Ground |
1 |
|
This Part is No Longer Available |
| 12 |
25-23145 |
|
|
|
|
O RING |
1 |
|
|
| 13 |
12-90931 |
|
|
|
|
WASHER-Thrust |
1 |
|
|
| 14 |
43-818807 |
|
|
|
|
GEAR-Drive |
1 |
|
|
| 15 |
17-47617 |
|
|
|
|
PIN-Roll |
1 |
|
|
| 16 |
32783 |
|
|
|
|
RETAINER (3 WIRE) |
2 |
|
|
| 17 |
32784 |
|
|
|
|
RETAINER (4 WIRE) |
4 |
|
|
| 18 |
54676 |
|
|
|
|
RETAINER (2 WIRE) |
2 |
|
|
| 19 |
84-847701Q7 |
|
|
|
|
CABLE KIT-Ignition-Spark Plugs/Coil (BLUE) |
1 |
84-847701A7 |
|
| 20 |
33-8134214 |
|
|
|
|
SPARK PLUG |
8 |
33-813421 |
2 |
| 21 |
37-92155 |
|
|
|
|
DECAL-Distributor Cap-Firing Order |
1 |
|
. |
| 22 |
27-344863 |
|
|
|
|
GASKET |
1 |
|
5 |
| 23 |
10-76926 |
|
|
|
|
SCREW (.375-16 x .875) |
1 |
|
|
| 24 |
13-35048 |
|
|
|
|
LOCKWASHER (.375) |
1 |
|
|
| 25 |
12-20553 |
|
|
|
|
WASHER |
1 |
|
|
| 26 |
52185 |
|
|
|
|
CLAMP |
1 |
|
|
| 27 |
10-76926 |
|
|
|
|
SCREW (.375-16 x .880) |
1 |
|
|
| 28 |
13-35048 |
|
|
|
|
LOCKWASHER (.375) |
1 |
|
|
| 29 |
12-20553 |
|
|
|
|
WASHER |
1 |
|
|
| 30 |
10-41408 |
|
|
|
|
SCREW (#10-32 x 1.500) |
1 |
|
|
| 31 |
65970T1 |
|
|
|
|
BRACKET-Coil Mount (On Elec Bracket) |
1 |
65970T |
3 |
| 32 |
300-8M0079202 |
|
|
|
|
COIL KIT-Ignition |
1 |
392-805570A2 |
|
| 33 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
2 |
|
|
| 34 |
11-68219 |
|
|
|
|
NUT (#10-32) |
2 |
|
|
| - |
27-822740A3 |
|
|
|
|
GASKET SET-Engine Overhaul |
1 |
|
This Part is No Longer Available |
| - |
847718A10 |
|
|
|
|
COMPONENT OF PARTIAL ENGINE |
|
847718a10 |
This Part is No Longer Available |
