| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

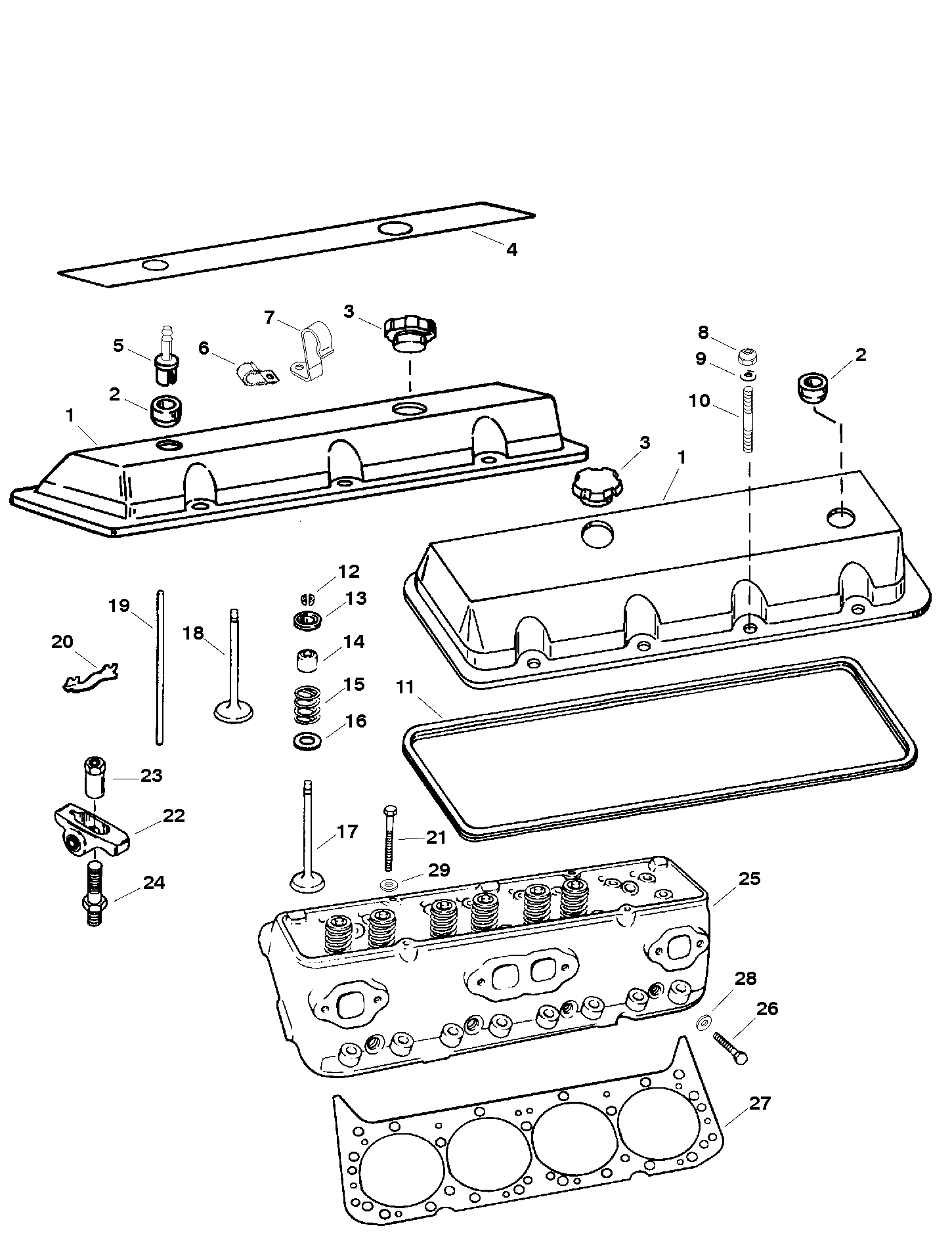

| 1 |
811587A4 |
|
|
|
|
COVER ASSEMBLY-Rocker Valve (BLUE) |
2 |
|
This Part is No Longer Available 2 |
| 2 |
25-811553 |
|
|
|
|
GROMMET-Rocker Cover |
2 |
|
5 |
| 3 |
36-811569 |
|
|
|
|
CAP-Oil Filler |
2 |
|
|
| 4 |
37-848590 |
|
|
|
|
DECAL |
2 |
|
This Part is No Longer Available |
| 5 |
22-8485571 |
|
|
|
|
FITTING |
2 |
22-848557 |
2 |
| 6 |
54-642352 |
|
|
|
|
J CLIP |
1 |
|
2 |
| 7 |
54-42553 |
|
|
|
|
J CLIP |
2 |
|
(POWER STEERING MODELS) 2 |
| 8 |
11-35888 |
|
676-9-72001 |
700-21180 |
|
NUT (.250-28)-Rocker Cover Stud |
14 |
|
2 |
| 9 |
12-35462 |
|
|
|
|
WASHER-Rocker Cover Stud |
14 |
|
2 |
| 10 |
16-56766 |
|
|
|
|
STUD-Rocker Cover |
14 |
|
2 |
| 11 |
27-14765 |
|
676-9-61311 |
|
|
GASKET-Rocker Cover |
2 |
|
2,5 |
| 12 |
96028 |
|
|
|
|
LOCK-Valve |
32 |
|
2 |
| 13 |
843376 |
|
|
|
|
RETAINER |
16 |
98598 |
2 |
| 14 |
26-827645 |
|
|
|
|
SEAL-Valve |
16 |
15832 |
2,5 |
| 15 |
24-13455T |
|
|
|
|
SPRING |
16 |
24-13455 |
2 |
| 16 |
15-845669 |
|
|
|
|
SHIM (.015)-Valve Spring |
AR |
15-54531 |
2,4 |
| 16 |
15-77624 |
|
|
|
|
SHIM (.030)-Valve Spring |
AR |
|
2,4 |
| 17 |
843080 |
|
|
|
|
VALVE-Exhaust |
8 |
13024 |
2 |
| 18 |
986781 |
|
|
|
|
VALVE-Inlet (2.190 Dia.) (Standard) |
8 |
|
2 |
| 19 |
848509 |
|
|
|
|
PUSHROD-Valve (8.650) |
8 |
|
(INLET) 2 |
| 19 |
848508 |
|
|
|
|
PUSHROD-Valve (9.600) |
8 |
|
(EXHAUST) 2 |
| 20 |
49132 |
|
|
|
|
GUIDE-Push Rod |
8 |
|
2 |
| 21 |
10-847875 |
|
|
|
|
SCREW (.437-14 x 3.960)-Cylinder Head |
4 |
|
2 |
| 21 |
10-847876 |
|
|
|
|
SCREW (.437-14 x 4.180)-Cylinder Head |
20 |
|
2 |
| 22 |
14729T1 |
|
|
|
|
ARM-Valve Rocker |
16 |
147291 |
2 |
| 23 |
11-848610 |
|
|
|
|
NUT-Valve Rocker Arm |
16 |
|
2 |
| 24 |
95820 |
|
|
|
|
STUD-Valve Rocker Arm |
16 |
|
2 |
| 25 |
938-817129T |
|
|
|
|
HEAD ASSEMBLY-Cylinder |
2 |
938-817129 |
This Part is No Longer Available 2 |
| NS |
22-845174 |
|
|
|
|
PLUG (.500-14) |
1 |
22-61162 |
|
| 26 |
10-848495 |
|
|
|
|
SCREW (.437-14 x 2.110)-Cylinder Head |
8 |
|
This Part is No Longer Available 2 |
| 27 |
27-8M0051520 |
|
|
|
|
GASKET-Cylinder Head |
2 |
27-8227401 |
2,5 |
| 28 |
12-848542 |
|
|
|
|
WASHER-Cylinder Head Screw (.437 x .750) |
8 |
|
This Part is No Longer Available 2 |
| 29 |
12-847877 |
|
|
|
|
WASHER-Cylinder Head Screw (.437 x .812) |
24 |
|
This Part is No Longer Available 2 |
| NS |
92-809826 |
|
|
|
|
SEALER-Red RTV |
AR |
92-916011 |
(REQUIRED FOR COMPLETE OVERHAUL) 1,3,4 |
| NS |
34227Q02 |
|
|
|
|
PERFECT SEAL |
AR |
92-342271 |
(REQUIRED FOR COMPLETE OVERHAUL) 1,2 |
| - |
27-822740A3 |
|
|
|
|
GASKET SET-Engine Overhaul |
1 |
|
This Part is No Longer Available |
| - |
847718A10 |
|
|
|
|
COMPONENT OF PARTIAL ENGINE |
|
|
This Part is No Longer Available |
