800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Oil Cooler (Transmission)

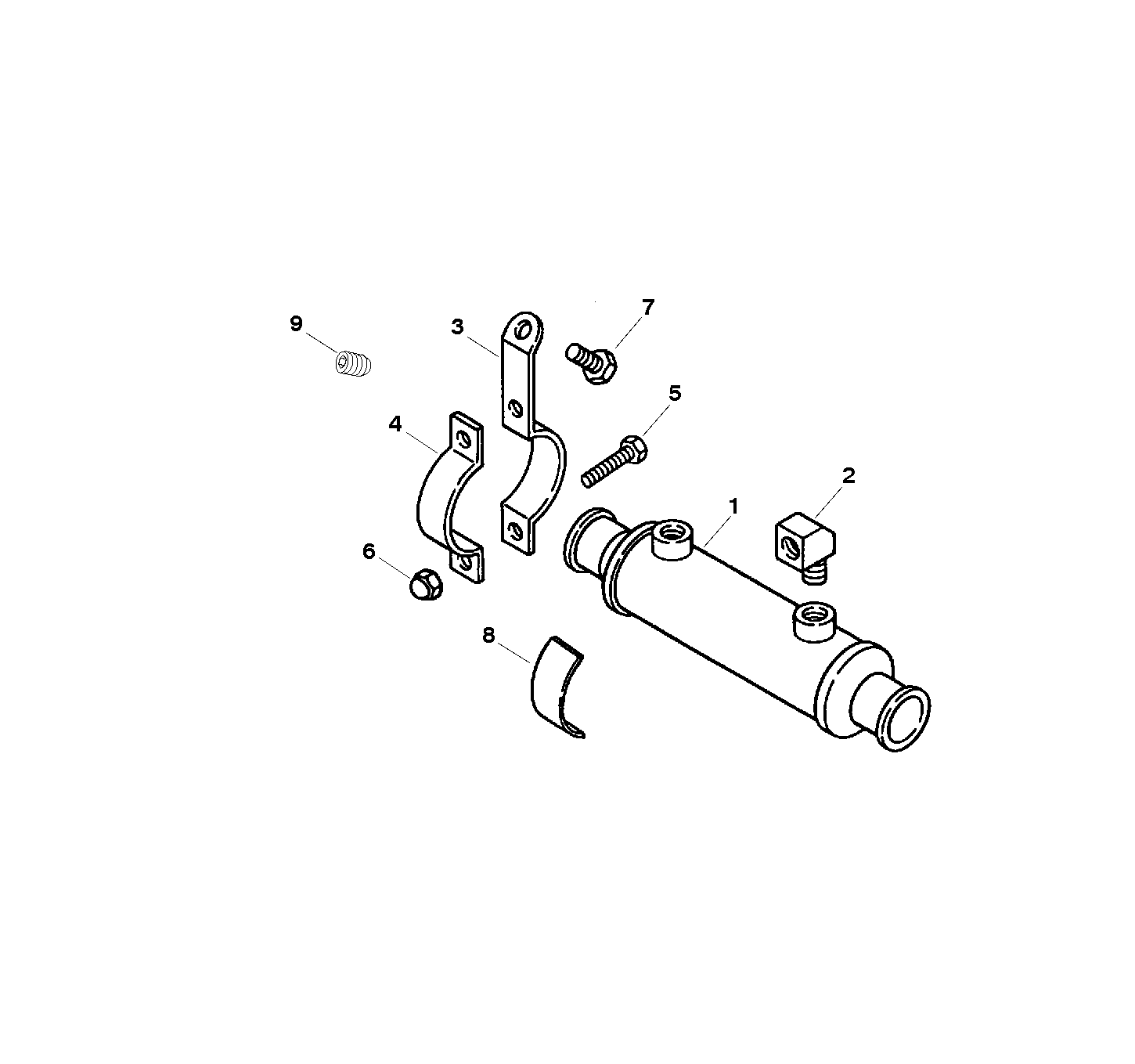

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 63832A1 | COOLER-Oil | 1 | ||||||
| 2 | 22-63835 | ELBOW (45 Degree) | 1 | ||||||
| 2 | 22-47629 | ELBOW (90 Degree) | 1 | ||||||
| 3 | 63820T | BRACKET (LONG) | 1 | ||||||
| 4 | 56328A1 | BRACKET (SHORT) | 1 | ||||||
| 5 | 10-60300 | SCREW (.250-28 x .750) | 2 | ||||||
| 6 | 11-30506 | NUT (.250-28) | 2 | ||||||
| 7 | 10-35765A1 | SCREW KIT (With Washer) | 1 | ||||||
| 8 | 18068 | PAD-Mounting Bracket | AR | This Part is No Longer Available 4 | |||||
| 9 | 10-64422 | SCREW-Set (.312-18 x .44) (Used As A Plug For Cylinder Block) | 1 | This Part is No Longer Available |
