800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Exhaust Manifold Assembly

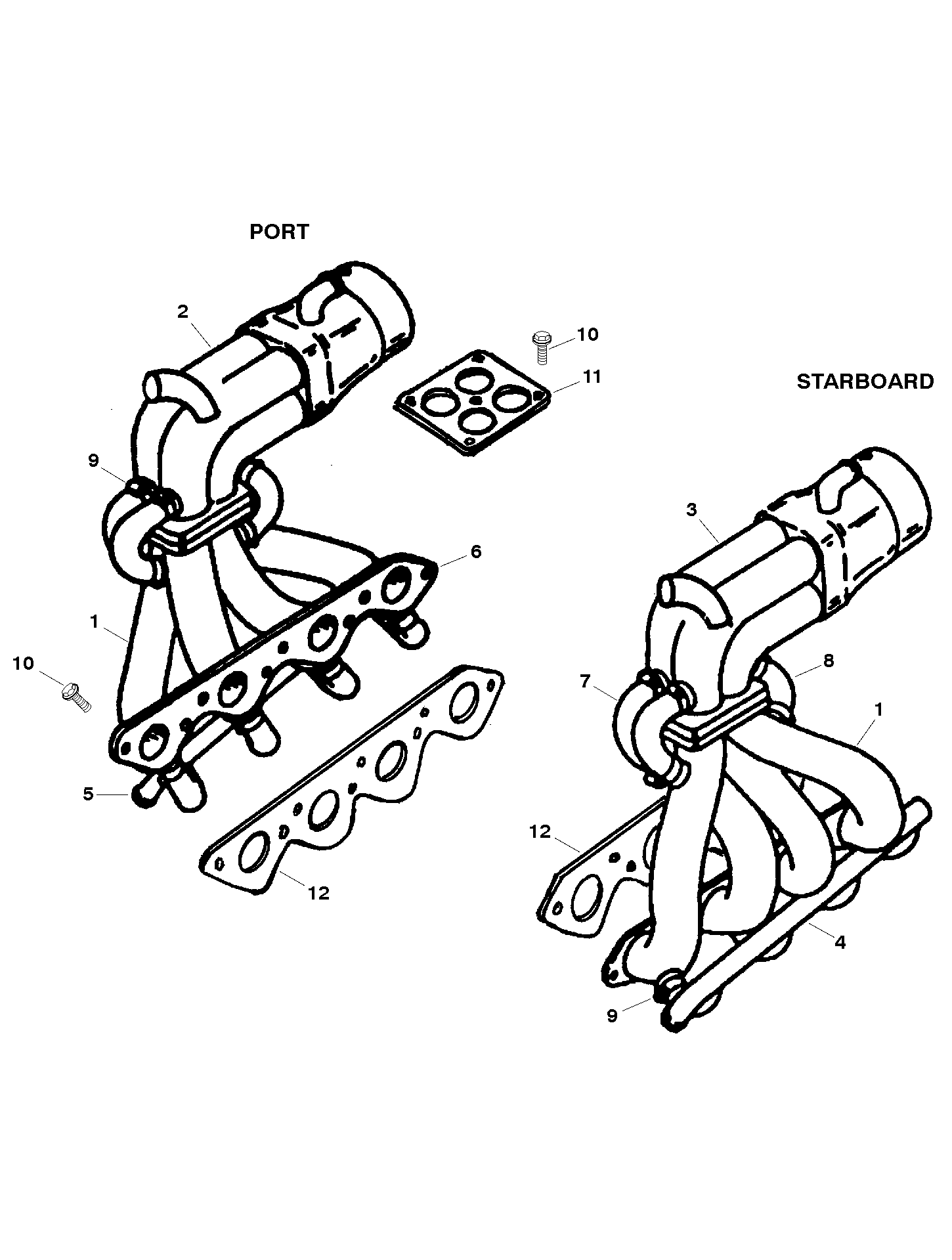

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
-	821137T2					MANIFOLD ASSY-Exhaust	1	821223A1	This Part is No Longer Available (STARBOARD)
1	821137					MANIFOLD-Exhaust-Lower	1		This Part is No Longer Available
2	821138					MANIFOLD-Exhaust-Upper	1
2	848006					MANIFOLD-Exhaust-Upper	OPT		This Part is No Longer Available (TIPPED) 6
4	32-821135					TUBE-Water Distribution	1		This Part is No Longer Available
6	32-821134					HOSE (90 Deg)-Distribution Tube	4		This Part is No Longer Available
7	32-821133					HOSE (180 Deg)-Lower Manifold to Upper	1		This Part is No Longer Available
8	32-821132					HOSE (115 Deg)-Lower Manifold to Upper	3		This Part is No Longer Available
9	54-180763					CLAMP-Hose	16
10	10-821131					SCREW (.375-16 x 1.00)	13
11	27-847934					GASKET-Split Flange	1		This Part is No Longer Available 5
12	27-841234					GASKET-Manifold to Cylinder Head	1	27-821129	5
-	821137T1					MANIFOLD ASSEMBLY-Exhaust	1	821224A1	This Part is No Longer Available (PORT)
1	821137					MANIFOLD-Exhaust-Lower	1		This Part is No Longer Available
3	821139					MANIFOLD-Exhaust-Upper	1
3	848005					MANIFOLD-Exhaust-Upper	OPT		This Part is No Longer Available (TIPPED) 6
5	32-821136					TUBE-Water Distribution	1		This Part is No Longer Available
6	32-821134					HOSE (90 Deg)-Distribution Tube	4		This Part is No Longer Available
7	32-821133					HOSE (180 Deg)-Lower Manifold to Upper	2		This Part is No Longer Available
8	32-821132					HOSE (115 Deg)-Lower Manifold to Upper	2		This Part is No Longer Available
9	54-180763					CLAMP-Hose	16
10	10-821131					SCREW (.375-16 x 1.00)	13
11	27-847934					GASKET-Split Flange	1		This Part is No Longer Available 5
12	27-841234					GASKET-Manifold to Cylinder Head	1	27-821129	5
-	27-822740A3					GASKET SET-Engine Overhaul	1		This Part is No Longer Available
