800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Intake Manifold And Front Cover

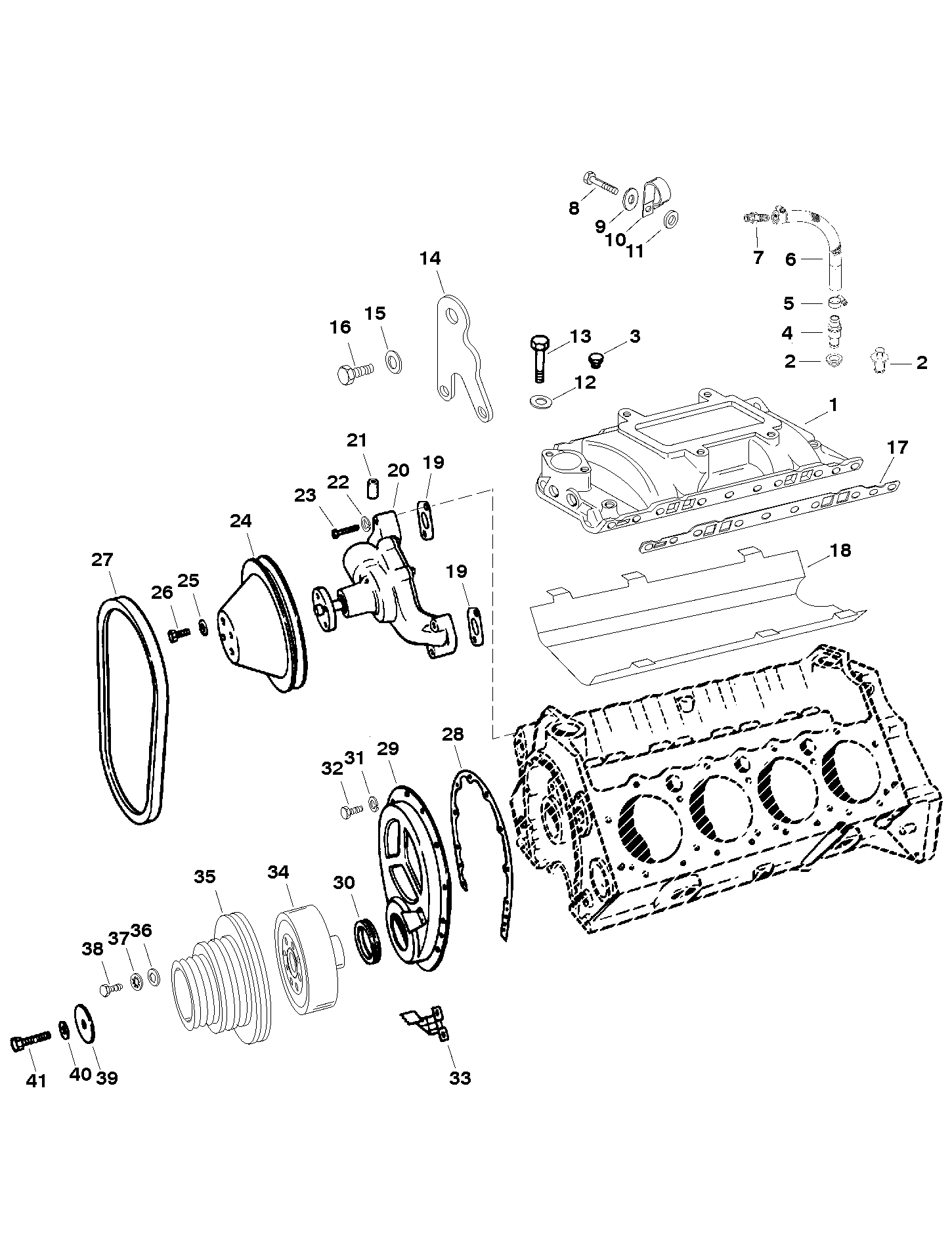

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 848584T1         MANIFOLD-Intake 1 848137 This Part is No Longer Available (SERIAL # 0F348742 AND DOWN) 3
1 848584T1         MANIFOLD ASSY-Intake 1 848584A1 This Part is No Longer Available (SERIAL # 0F615830 AND UP) 2
2 25-811553         GROMMET 1
2 22-848646         PLUG-Grommet 1   (WITHOUT PCV VALVE)
3 22-328022         PLUG-Manifold 1 22-32802 3
4 848578         VALVE ASSEMBLY-Vent 1   (SERIAL # 0F615830 AND UP)
5 54-815504104         CLAMP 1   (SERIAL # 0F615830 AND UP)
6 32-823229A5         HOSE ASSEMBLY (21.00 In.) 1   This Part is No Longer Available (SERIAL # 0F615830 AND UP)
7 22-823195         ADAPTOR 1   This Part is No Longer Available (SERIAL # 0F615830 AND UP)
8 10-821281         SCREW (.312-18 x 2.50) 1
9 12-70132         WASHER 1
10 54-78945         J CLIP 1
11 821018         SPACER 1   This Part is No Longer Available
12 12-37828         WASHER 16   2
13 10-822168         SCREW (.375-16 x 1.750) 13   2
13 10-848160         SCREW (.375-16 x 1.380)-Socket Head 1   2
13 10-842787         SCREW (.375-16 x 2.00)-Socket Head 2 10-47432 2
14 848129         LIFTING EYE 1 818985 2
15 12-45175         WASHER 3   3
16 10-58642         SCREW (.375-16 x 1.500) 1
16 10-35047         SCREW (.375-16 x 1.250) 2
17 27-8181881         GASKET-Intake Manifold 2 27-818188 2,3,5
18 845756T         SHIELD-Oil-Intake 1 816073 2
19 27-49110         GASKET-Water Pump Mount 2   2,5
20 8504541         PUMP ASSEMBLY-Water 1 811573 2
21 22-845174         PLUG-Circulating Pump 2 22-61162 2
22 13-35048         LOCKWASHER (.375) 4   2
23 10-32132         SCREW (.375-16 x 1.750) 4   2
24 523491         PULLEY (BLUE) 1   This Part is No Longer Available
25 13-39107     700-21496   LOCKWASHER (.312) 4
26 10-47277         SCREW (.312-24 x .750) 4
27 57-816034Q         V BELT 1 57-816034
28 27-54529   676-9-61601 700-30440   GASKET 1   2,5
29 66215         COVER ASSEMBLY-Timing Chain 1   This Part is No Longer Available 2
30 26-8219471         SEAL-Oil 1   5
31 13-26992         LOCKWASHER (.250) 10   2
32 10-28635         SCREW (.250-20 x .625) 10   2
33 59966         POINTER-Timing 1   2
34 847679         DAMPER-Torsional 1   This Part is No Longer Available 2
35 847700         PULLEY-Crankshaft (BLUE) 1   This Part is No Longer Available 2
36 12-20553         WASHER 3   2
37 13-35048         LOCKWASHER (.375) 3   2
38 10-524091         SCREW (.375-24 x 3.250) 3   This Part is No Longer Available 2
39 12-49103         WASHER 1   2
40 13-38829         LOCKWASHER (.500) 1   2
41 10-8M2011240         SCREW-Crankshaft 1 10-48490 2
- 27-822740A3         GASKET SET-Engine Overhaul 1   This Part is No Longer Available
- 847718A10         COMPONET OF PARTIAL ENGINE     This Part is No Longer Available
