| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

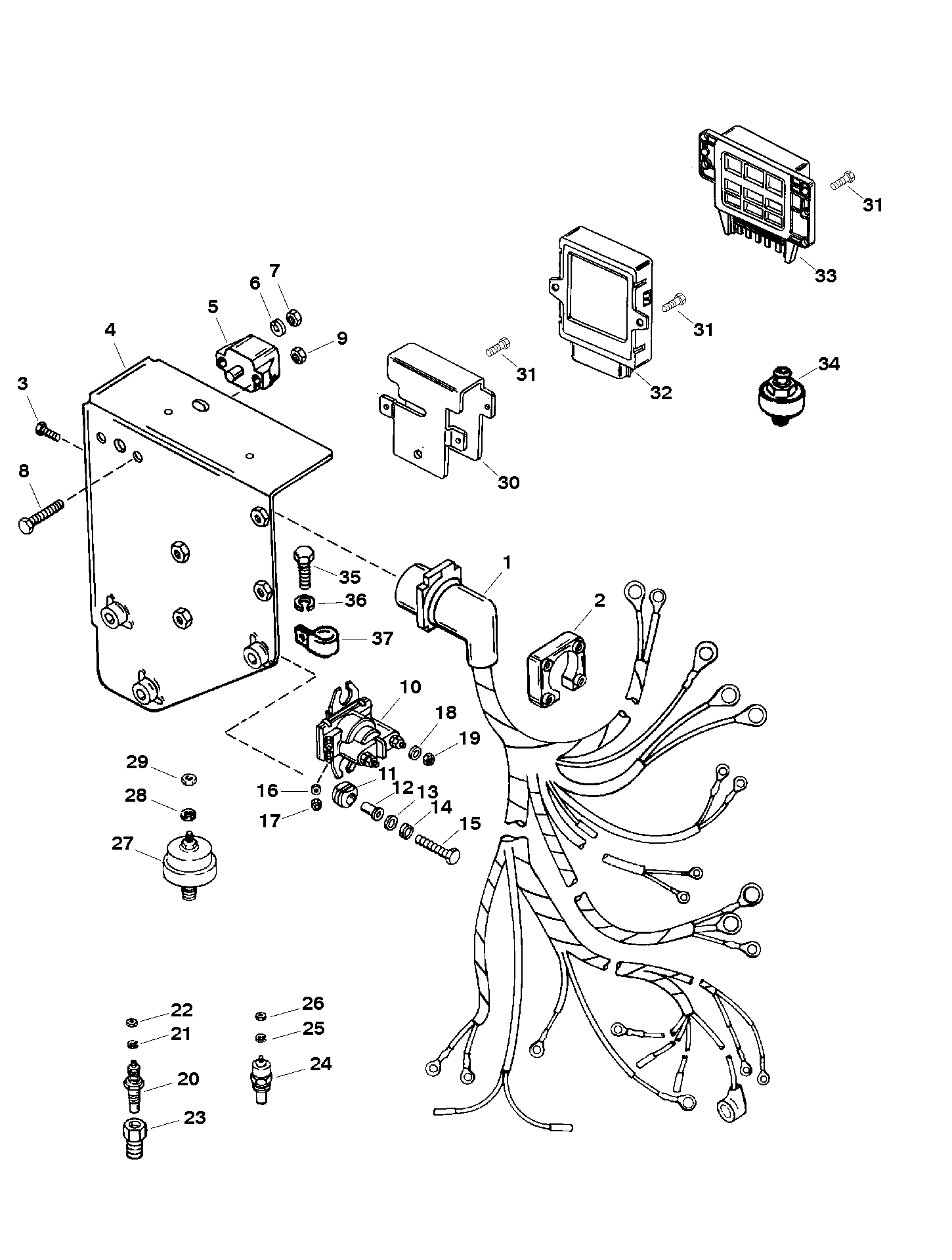

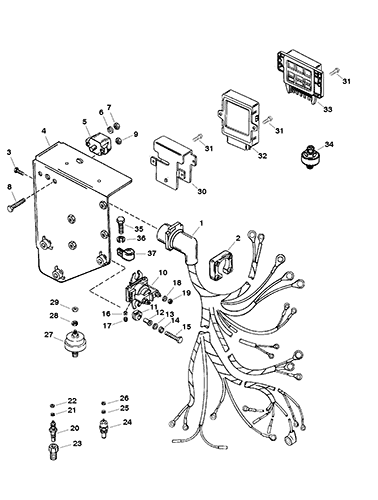

| 1 |
84-849142A1 |
|
|
|
|
HARNESS ASSEMBLY-Wiring |
1 |
|
|
| 2 |
26079A2 |
|
|
|
|
PLATE KIT |
1 |
|
|
| 3 |
10-15001 |
|
|
|
|
SCREW (#8-16 x .875) |
4 |
|
|
| 4 |
848734T1 |
|
|
|
|
BRACKET-Electrical Components |
1 |
8487341 |
This Part is No Longer Available |
| 5 |
88-11178A01 |
|
|
|
|
BREAKER-Circuit (50 AMP) |
1 |
88-11178 |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 6 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
2 |
|
|
| 7 |
11-68219 |
|
|
|
|
NUT (#10-32) |
2 |
|
|
| 8 |
10-45862 |
|
|
|
|
SCREW (#10-32 x .875) |
2 |
|
|
| 9 |
11-61356 |
|
|
|
|
NUT (#10-32) |
2 |
|
|
| 10 |
89-818999A2 |
|
|
|
|
SOLENOID ASSEMBLY-Starter |
1 |
|
|
| 11 |
25-818967 |
|
|
|
|
GROMMET |
2 |
|
|
| 12 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 13 |
12-29245 |
|
|
|
|
WASHER |
2 |
|
|
| 14 |
13-26992 |
|
|
|
|
LOCKWASHER (.250) |
2 |
|
|
| 15 |
10-76630 |
|
|
|
|
SCREW (.250-20 x 1.00) |
2 |
|
|
| 16 |
13-26995 |
|
|
|
|
LOCKWASHER (#8) |
2 |
|
|
| 17 |
11-26419 |
|
|
|
|
NUT (#8-32) |
2 |
|
|
| 18 |
13-26992 |
|
|
|
|
LOCKWASHER (.250) |
2 |
|
|
| 19 |
11-94330 |
|
|
|
|
NUT (.250-20) |
2 |
|
|
| 20 |
849363 |
|
|
|
|
SENDER ASSEMBLY-Oil Temperature |
1 |
|
|
| 21 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
1 |
|
|
| 22 |
11-45076 |
|
|
|
|
NUT (#10-32) |
1 |
|
|
| 23 |
22-64013 |
|
|
|
|
REDUCER-Engine Block |
1 |
|
|
| 24 |
806490T |
|
|
|
|
SENDER ASSY-Water Temperature |
1 |
97257A1 |
|
| 24 |
49734 |
|
|
|
|
SENDER ASSY-Water Temperature |
OPT |
|
(DUAL) 6 |
| 25 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
1 |
|
|
| 26 |
11-45076 |
|
|
|
|
NUT (#10-32) |
1 |
|
|
| 27 |
8M0068784 |
|
|
|
|
SENDER ASSEMBLY-Oil Pressure |
1 |
815425 |
|
| 27 |
37293T |
|
|
|
|
SENDER ASSEMBLY-Oil Pressure |
OPT |
37293 |
(DUAL) 6 |
| 28 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
1 |
|
|
| 29 |
11-45076 |
|
|
|
|
NUT (#10-32) |
1 |
|
|
| 30 |
807763T |
|
|
|
|
BRACKET-Module Mounting |
1 |
|
|
| 31 |
10-806827 |
|
|
|
|
SCREW (#8-32 x .375) |
6 |
|
|
| 32 |
8488251 |
|
|
|
|
MODULE-Ignition |
1 |
|
|
| 33 |
805443 |
|
|
|
|
MODULE ASSEMBLY-Spark Control |
1 |
805443T |
This Part is No Longer Available |
| 34 |
8M0077616 |
|
|
|
|
SENSOR ASSEMBLY-Knock |
1 |
805544T |
|
| 35 |
10-37612 |
|
|
|
|
SCREW (.375-16 x 1.250) |
3 |
|
|
| 36 |
13-35048 |
|
|
|
|
LOCKWASHER (.375) |
3 |
|
|
| 37 |
54-848183 |
|
|
|
|
J CLIP-Wiring Harness |
1 |
|
|
