800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Reservoir Bottle (Transmission Fluid)

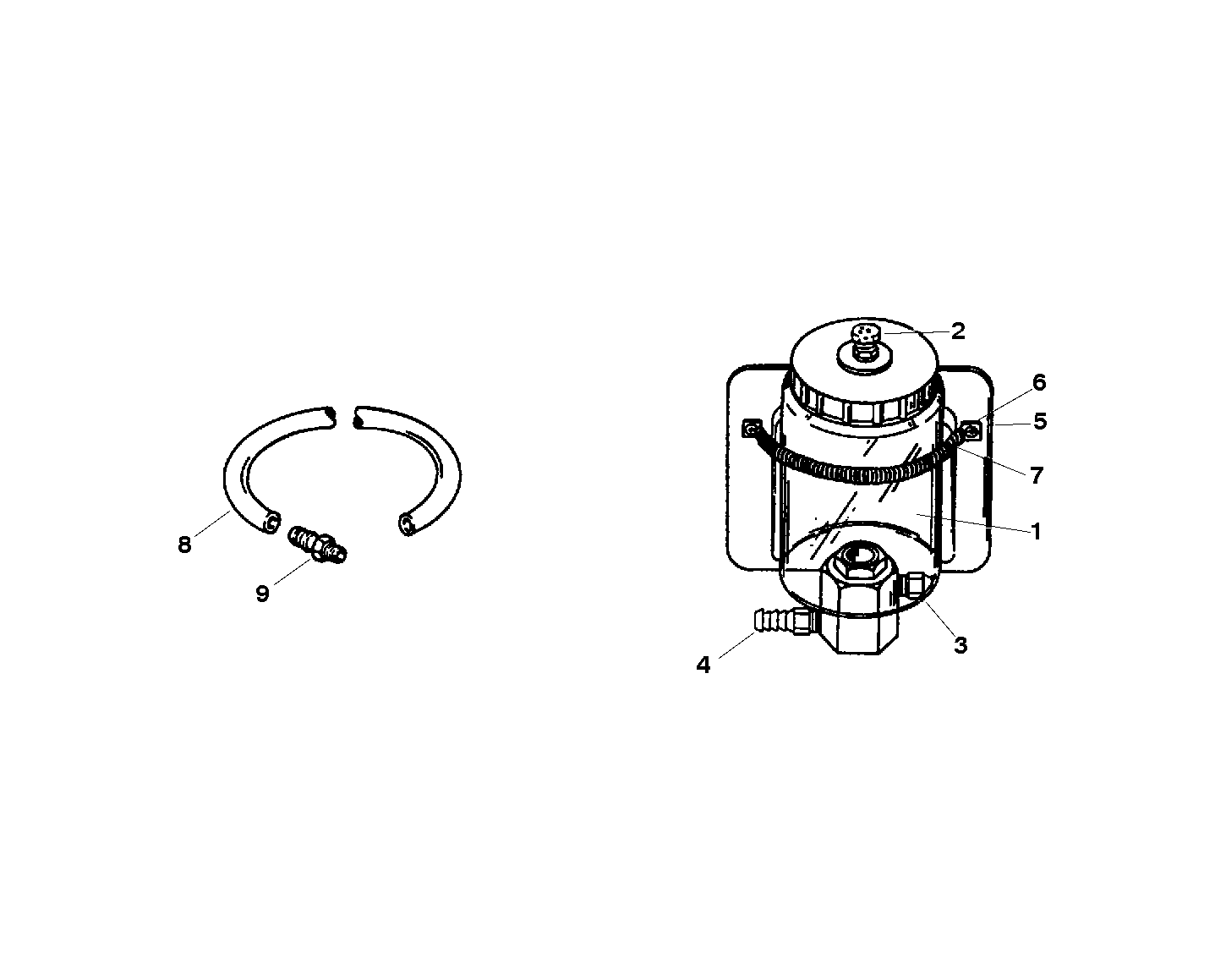

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 86250A5 | RESERVOIR KIT (Transmission Models) | 1 | ||||||
| 1 | 86250A2 | BOTTLE ASSEMBLY-Reservoir | 1 | ||||||
| 2 | 22-47902 | FITTING-Breather | 1 | ||||||
| NS | 27-69620 | GASKET-Reservoir Bottle Cover | 1 | ||||||
| 3 | 22-36382 | 700-21887 | PLUG | 1 | |||||
| 4 | 22-63187 | FITTING (.250-18) | 1 | ||||||
| 5 | 86030 | BRACKET-Reservoir | 1 | ||||||
| 6 | 67905 | RETAINER-Reservoir Spring | 2 | ||||||
| NS | 10-22793 | SCREW (#9-14 x .875) | 3 | ||||||
| NS | 12-58198 | WASHER | 3 | ||||||
| 7 | 24-67908 | SPRING-Reservoir Bracket | 1 | ||||||
| 8 | 32-774572 | HOSE (48.00 In.) | 1 | ||||||
| 9 | 22-63186 | FITTING (.125-27) | 1 | ||||||
| NS | 69355 | STA STRAP-End of Hose | 2 |
