| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

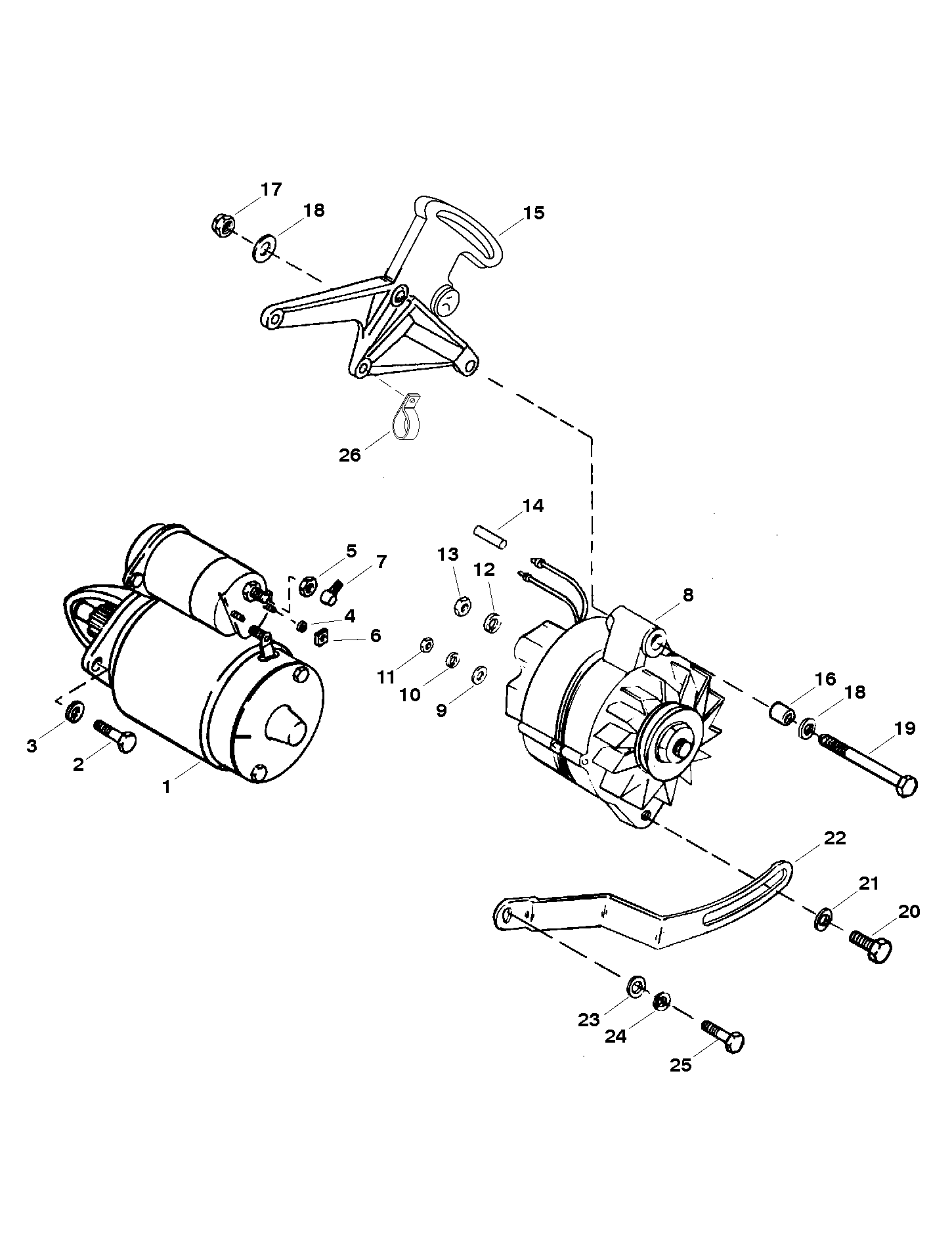

| 1 |
50-808011A05 |
|
|
|
|
STARTER ASSEMBLY |
1 |
50-17251A3 |
(DRIVELINE MODELS) (SEE PARTS BREAKDOWN) NOT SHOWN 3 |
| 1 |
50-808011A05 |
|
|
|
|
STARTER ASSEMBLY |
1 |
50-808011A1 |
(DRIVELINE MODELS) (SEE PARTS BREAKDOWN) COMPONENT OF PARTIAL ENGINE [847718A10] |
| 2 |
10-47461 |
|
|
|
|
SCREW (.437-14 x 1.00) |
2 |
|
SUPERSEDES TO ANOTHER PART NUMBER |
| 3 |
13-32993 |
|
|
|
|
LOCKWASHER (.437) |
2 |
|
AS REQUIRED |
| 4 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
1 |
|
COMPONENT OF ENGINE OVERHAUL GASKET SET [27-822740A3] |
| 5 |
11-15874 |
|
|
|
|
NUT (10M) |
1 |
|
OPTIONAL |
| 6 |
11-400211 |
|
|
|
|
NUT (5M) |
1 |
|
NOTE SOLD SEPARATE; SHOULD BE ORDERED FROM A LOCAL SUPPLIER USING DELCO REMY MANUFACTURER'S PART # |
| 7 |
85-79695T |
|
|
|
|
BOOT-Insulator-Starter Terminal |
1 |
85-79695 |
|
| 8 |
8171191 |
|
|
|
|
ALTERNATOR ASSEMBLY (BLUE) |
1 |
|
(SEE PARTS BREAKDOWN) |
| 9 |
12-96457 |
|
|
|
|
WASHER |
1 |
|
|
| 10 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
1 |
|
|
| 11 |
11-79989 |
|
|
|
|
NUT (#10-24) |
1 |
|
|
| 12 |
13-26992 |
|
|
|
|
LOCKWASHER (.250) |
1 |
|
|
| 13 |
11-8267098 |
|
|
|
|
NUT (.250-20) |
1 |
11-56374 |
|
| 14 |
5790811 |
|
|
|
|
SLEEVE (10.00 In. Bulk) |
1 |
|
(CUT AS REQ'D) |
| 15 |
815251T1 |
|
|
|
|
BRACKET KIT-Alternator Mount (.375 Holes) |
1 |
815251A1 |
This Part is No Longer Available |
| 16 |
23-33186 |
|
|
|
|
BUSHING |
1 |
|
|
| 17 |
11-23161 |
|
|
|
|
NUT (.375-24) |
1 |
|
|
| 18 |
12-20553 |
|
|
|
|
WASHER |
3 |
|
|
| 19 |
10-48308 |
|
|
|
|
SCREW (.375-24 x 3.750) |
1 |
|
|
| 20 |
10-29198 |
|
|
|
|
SCREW & LOCKWASHER (.312-18 x .875) |
1 |
|
|
| 21 |
12-26168 |
|
|
|
|
WASHER |
1 |
|
|
| 22 |
85013T |
|
|
|
|
BRACE |
1 |
|
|
| 23 |
12-27025 |
|
|
|
|
WASHER |
1 |
|
|
| 24 |
13-32993 |
|
|
|
|
LOCKWASHER (.437) |
1 |
|
|
| 25 |
10-47461 |
|
|
|
|
SCREW (.437-14 x 1.00) |
1 |
|
|
| 26 |
54-62494 |
|
|
|
|
CLIP |
1 |
|
|
