| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

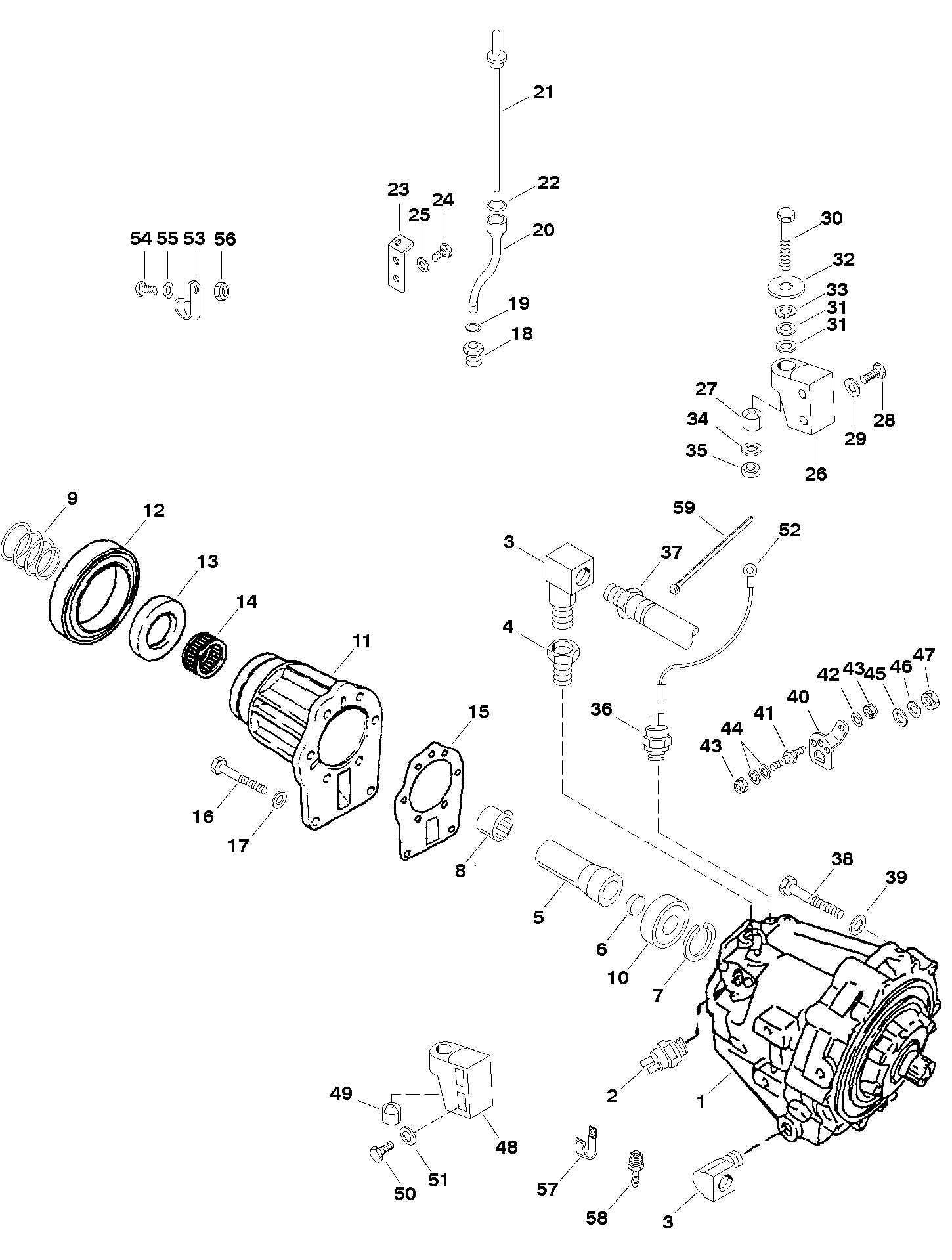

821847A6 |
|
|
|
|
TRANSMISSION ASSEMBLY (COMPLETE) |
1 |
|
This Part is No Longer Available |
| 1 |
821847A5 |
|
|
|
|
TRANSMISSION |
1 |
|
|
| 2 |
47613 |
|
|
|
|
SWITCH-Neutral |
1 |
|
|
| 3 |
22-47629 |
|
|
|
|
ELBOW-Transmission To Oil Hose |
2 |
|
|
| 4 |
22-88517 |
|
|
|
|
FITTING-Reducing-Transmission Elbow |
1 |
|
|
| 5 |
47339A4 |
|
|
|
|
COUPLING ASSY-Engine To Transmission |
1 |
|
No longer made, limited availability |
| 6 |
19-47463 |
|
|
|
|
PLUG-Expansion-Engine Coupling |
1 |
|
|
| 7 |
53-47469 |
|
|
|
|
RING-Snap-Bearing To Eng Coupling |
1 |
|
|
| 8 |
23-47471T |
|
|
|
|
BEARING-Engine Coupling |
1 |
23-47471 |
|
| 9 |
24-47755 |
|
|
|
|
SPRING-Guide-Engine Coupling |
1 |
|
|
| 10 |
30-47470 |
|
|
|
|
BEARING-Ball |
1 |
|
|
| 11 |
47333A1 |
|
|
|
|
HOUSING ASSEMBLY-Bearing Support |
1 |
|
This Part is No Longer Available |
| 12 |
25-47756 |
|
|
|
|
O RING-Bearing Support Housing |
1 |
|
2 |
| 13 |
26-47465 |
|
|
|
|
SEAL-Oil-Bearing Support Housing |
1 |
|
|
| 14 |
31-47468T |
|
|
|
|
BEARING-Needle-Support Housing |
1 |
31-47468 |
This Part is No Longer Available |
| 15 |
27-47903 |
|
|
|
|
GASKET-Bearing Support Housing |
1 |
|
|
| 16 |
10-47462 |
|
|
|
|
SCREW (.437-14 x 1.250) |
8 |
|
|
| 17 |
13-32993 |
|
|
|
|
LOCKWASHER (.437) |
8 |
|
|
| 18 |
48461 |
|
|
|
|
ADAPTOR-Oil Level Gauge Tube To Trans |
1 |
|
This Part is No Longer Available |
| 19 |
25-48462 |
|
|
|
|
O RING-Oil Level Tube Adaptor |
1 |
|
|
| 20 |
48463 |
|
|
|
|
TUBE-Oil Level Gauge |
1 |
|
This Part is No Longer Available |
| 21 |
48464 |
|
|
|
|
GAUGE-Oil Level |
1 |
|
This Part is No Longer Available |
| 22 |
25-35276 |
|
|
|
|
O RING-Oil Level Gauge |
1 |
|
|
| 23 |
48466 |
|
|
|
|
BRACKET-Mount-Oil Level Gauge Tube |
1 |
|
This Part is No Longer Available |
| 24 |
10-34290 |
|
|
|
|
SCREW (.250-20 x .625) |
2 |
|
|
| 25 |
13-26992 |
|
|
|
|
LOCKWASHER (.250) |
2 |
|
|
| 26 |
47340A1 |
|
|
|
|
BRACKET ASSY-Trans Mount (PORT) |
1 |
|
|
| 27 |
35852 |
|
|
|
|
MOUNT-Transmission Mount Bracket |
1 |
|
|
| 28 |
10-47462 |
|
|
|
|
SCREW (.437-14 x 1.250) |
2 |
|
|
| 29 |
13-32993 |
|
|
|
|
LOCKWASHER (.437) |
2 |
|
|
| 30 |
10-47467 |
|
|
|
|
SCREW (.625-18 x 5.500) |
2 |
|
|
| 31 |
12-47466 |
|
|
|
|
WASHER (NEOPRENE)-Tailstock Screws |
4 |
|
|
| 32 |
12-47475 |
|
|
|
|
WASHER-Tailstock Screws |
2 |
|
|
| 33 |
13-34846 |
|
|
|
|
LOCKWASHER-Tailstock Screws |
2 |
|
|
| 34 |
12-33171 |
|
|
|
|
WASHER-Tailstock Screws |
2 |
|
|
| 35 |
11-22339 |
|
|
|
|
NUT (.625-18) |
2 |
|
|
| 36 |
87-88031 |
|
|
|
|
SWITCH-Temperature |
1 |
|
|
| 37 |
32-475166 |
|
|
|
|
HOSE (30.00 In.)-Trans To Oil Cooler |
2 |
|
|
| 38 |
10-60179 |
|
|
|
|
SCREW (.437-14 x 3.500) |
6 |
|
|
| 39 |
13-32993 |
|
|
|
|
LOCKWASHER (.437) |
6 |
|
|
